PRODUCTION DOCUMENT
|
PRODUCTION DOCUMENT |
|
|||||||
| Generated : Dec 01 14:01:17 | Zone : d:\workzones\parkerward\pumpe\ | NC Machine : Heidenhain 426 - Tip of Tool | Programmer : Chris Parker | |

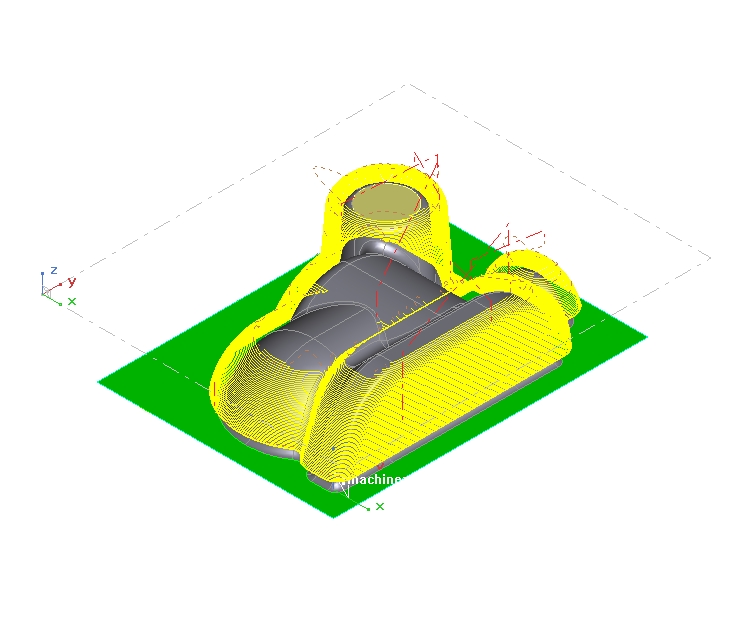

| TOOLPATH : 6 | Z-level finishing | |
| CUTTER |  |
|
 |
||
| Ball Ø10.00 | ||
| Cutter length | 32 | |
| Cutter N° | 0 | |
| Holder | a-10mm-showa.hld | |
| Spindle | 6366 | |
| Feed | 3000 | |
| Approach | 2000 | |
| Stock | 0.000 | |
| Tolerance | 0.010 | |
| Step | 0.372 | |
| Z-step | 0.372 | |
| Cutter description | ||
| Toolpath machining area | Posted file | Time | ||
| MinX : -78.659 mm | MinY : -4.177 mm | MinZ : 0.002 mm | spt-06.h | 0h 8min 53s |
| MaxX : 5.590 mm | MaxY : 110.011 mm | MaxZ : 35.000 mm |
