PRODUCTION DOCUMENT
|
PRODUCTION DOCUMENT |
|
|||||||
| Generated : Dec 01 14:01:17 | Zone : d:\workzones\parkerward\pumpe\ | NC Machine : Heidenhain 426 - Tip of Tool | Programmer : Chris Parker | |

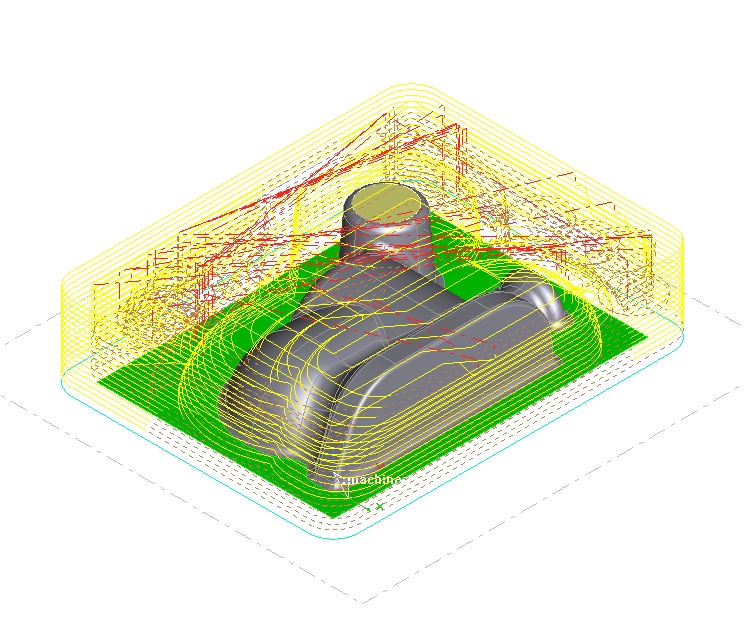

| TOOLPATH : 1 | High-Feed Roughing | |
| CUTTER |  |
|
 |
||
| Bull-nose Ø25.00 r 2.00 | ||
| Cutter length | 32 | |
| Cutter N° | 0 | |
| Holder | a-25mm-showa.hld | |
| Spindle | 2546 | |
| Feed | 3000 | |
| Approach | 2000 | |
| Stock | 1.000 | |
| Tolerance | 0.100 | |
| Step | 8.400 | |
| Z-step | 1.856 | |
| Cutter description | ||
| Toolpath machining area | Posted file | Time | ||
| MinX : -93.999 mm | MinY : -19.999 mm | MinZ : 1.100 mm | spt-01.h | 0h 11min 17s |
| MaxX : 19.999 mm | MaxY : 124.999 mm | MaxZ : 37.000 mm |
